Product title Led Panel Mount Indicator Blue 22mm Round 24V Screw Block IP65
Product title Led Panel Mount Indicator Blue 22mm Round 24V Screw Block IP65

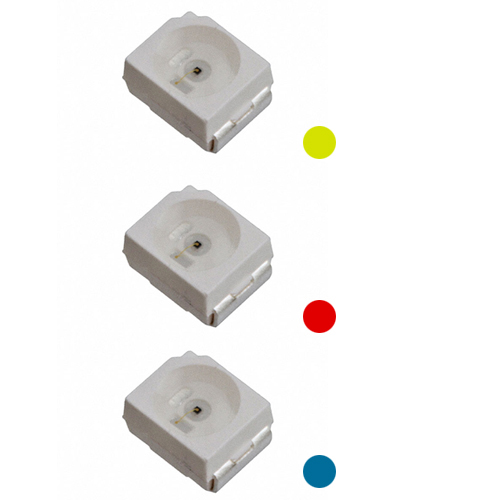

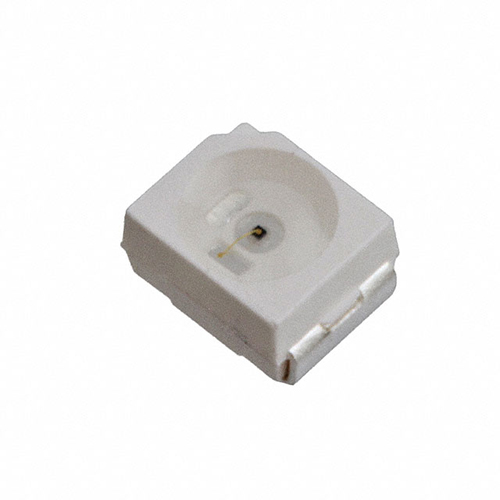

LED SMD PLCC2 Blue 468 nm
Product Description
LED PLCC2 2K Reel Blue
Technical Downloads:
 Datasheet |
Download
|
Additional information
| ECCN | EAR99 |
|---|---|
| RoHS | Yes |
| REACH Compliant | Yes |
| LED size | PLCC2 |
| LED Mounting Method | SMD |
| Standard/Custom Product | Standard |
| Lead Time (wks) | 10 |
| LED Output Color | Blue |
| LED Style | – |
| Lens Type | – |
| MSL Rating | – |
| Sub Family | Surface Mount LEDs – PLCC2 Package |
|---|---|
| Package Qty | 2000 Pcs / 1 Reel |
| Series Name Single Select | SMD |
| Minimum Order Qty | 2000 |
| Package Type | Tape and Reel |
| Viewing Angle | 120 degree viewing angle |
| Product Family | VCC |
| Product Status | Active |
| Peak Wavelength (nm) | 468 nm |
| Country of Origin | TW (Taiwan) |
| LED Package Color | Clear |
| Luminous Intensity Max. (mcd) | 225 mcd |
|---|---|
| Luminous Intensity Min. (mcd) | 90 mcd |
| LED Forward Current (mA) | 25 mA |
| Harmonization Code | 8541.40.60.50 |
| Price Book Export Key Attribute for Macro | VCC |
| Conflict Mineral Free | Yes |
| LED Forward Current Max. (mA) | 80mA |
| LED Voltage Forward Max. (V) | 3.5 V |
| LED Voltage Forward Min. (V) | 2.7 V |
