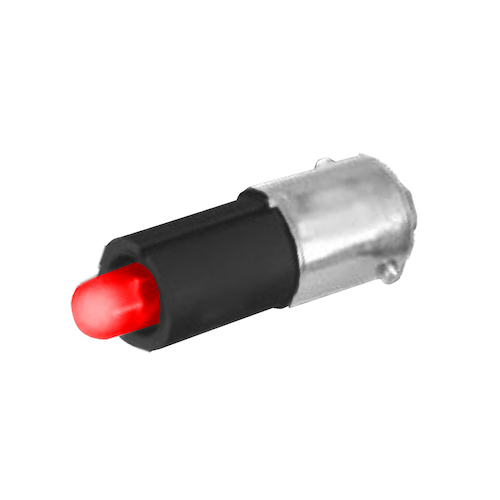

LED Lamp T-3 1/4 Miniature Bayonet Red 2V
Product Description
LED Lamp T-3 1/4 Bayonet 2V Mini Red
- Categories:
- Lamps
- LED Bayonet
- LED Lamp
Technical Downloads:
 Datasheet |
Download
|
Description
LED Lamp T-3 1/4 Bayonet 2V Mini Red
Additional information
| ECCN | EAR99 |
|---|---|
| RoHS | Yes |
| REACH Compliant | Yes |
| Rated Current | 10mA |
| Standard/Custom Product | Standard |
| Voltage | 2 VDC |
| Lamp Size | T-3 1/4 |
| Lamp Type | LED |
| Lead Time (wks) | 12 |
| LED Style | Round with Domed Top |
| Lamp Color | Red |
|---|---|
| MSL Rating | – |
| Sub Family | T-3 1/4 Miniature Lamp with Lens |
| Max Voltage | 2.7 Volts |
| Package Qty | 10 |
| Series Name Single Select | 400 |
| Minimum Order Qty | 100 |
| Package Type | ESD Bag |
| Lamp Base Type | Miniature Bayonet Base |
| Product Family | DDP |
| Product Status | New Product Introduction (NPI) |
|---|---|
| Peak Wavelength (nm) | 635 nm |
| Country of Origin | MX (Mexico) |
| Luminous Intensity Typ. (mcd) | 120 mcd |
| Max Current | 30 mA |
| Harmonization Code | 8531.80.90.51 |
| Price Book Export Key Attribute for Macro | DDP Standard |
| Conflict Mineral Free | Yes |
