Product title Led Panel Mount Indicator Blue 22mm Round 24V Screw Block IP65

Product title Led Panel Mount Indicator Blue 22mm Round 24V Screw Block IP65

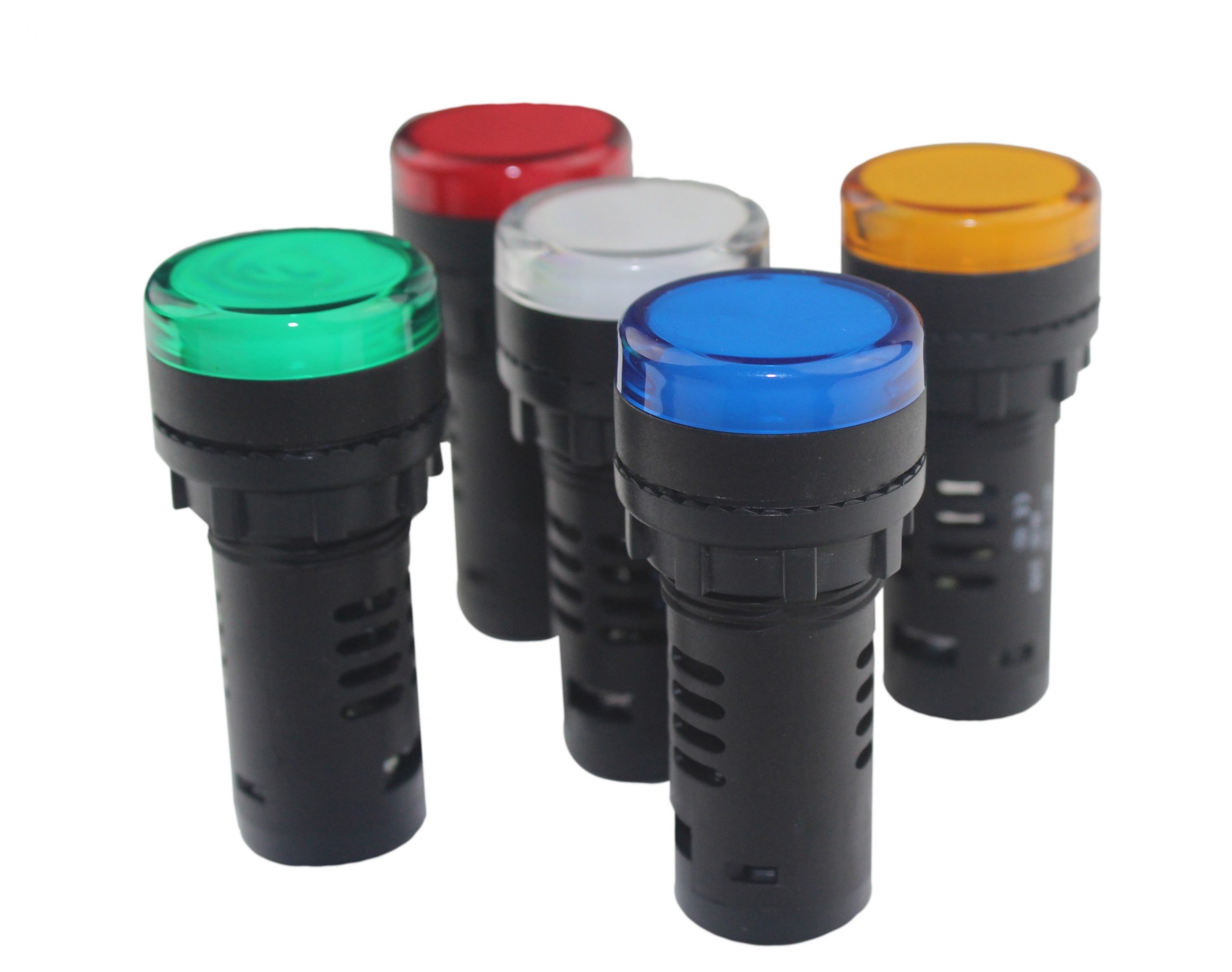

LED Panel Mount Indicator Yellow 22mm Round 24V Screw Block IP65

SKU: PCL2224V700B Categories: LED Panel Mount Indicator, Panel Mount Indicators, PCL22 Series

Distributor	Stock	View in Website
Loading

Product Description

PMI 22mm LED 24V Screw Block Flat Yellow

Technical Downloads:

Datasheet	Download
STEP File	Download
IGES file	Download

Description

MOQ is set to 90 because we get the PCL22 series from a supplier at an odd MOQ, keep the MOQ at 90.

Additional information

ECCN	EAR99
RoHS	Yes
Mounting Hole Dimension	Dia. 22mm
REACH Compliant	Yes
Standard/Custom Product	Standard
Voltage	24 VDC
Lead Time (wks)	12
LED Output Color	Yellow
Lens Type	Translucent Lens
PMI Color	Yellow
Lens Shape	Round Lens
MSL Rating	–

Sub Family	LED Panel Mount Indicator Lights
Terminals	Screw Blocks
Finish	Black
Package Qty	15
PMI Housing Finish	Black Polyamide
Series Name Single Select	PCL22
Minimum Order Qty	90
Package Type	Bulk Bag
PMI Mounting	Front Panel Mounting
Material Lens	Polycarbonate UL 94-V2
Mounting Type	Front Panel Mount
Product Family	VCC

Product Status	New Product Introduction (NPI)
Peak Wavelength (nm)	588 nm
Country of Origin	CN (China)
Mounting Hardware	With Lockwasher and Hex Nut
Tab Terminal Size	–
Harmonization Code	8531.80.90.51
PMI Panel Thickness	0.039" to 0.255"
Degree of Ingress Protection	IP65
Price Book Export Key Attribute for Macro	VCC
Conflict Mineral Free	Yes
Mounting Hardware Included	Yes
