LED Panel Mount Indicator Yellow 22mm Round 120V Wire Leads IP67
Product Description
PMI RND 22mm LED 120V Wire Yellow MS
Datasheet
Description

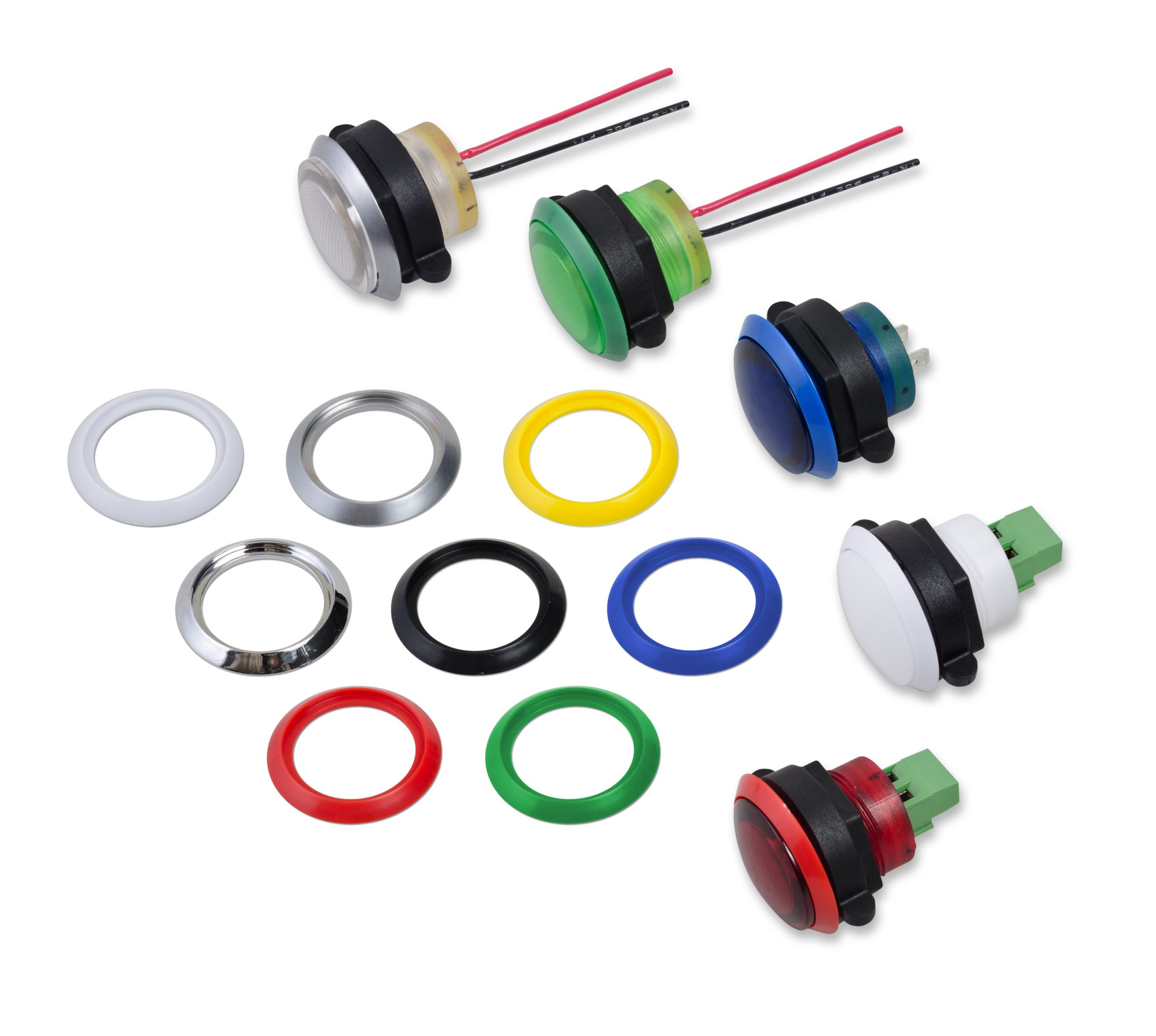

CNX 722 Series 0.866″ (22mm) Ruggedized LED Panel Mount Indicator. CNX 722 120V Series with built-in LED offers fast, easy installation in harsh environments.
Additional information
| ECCN | EAR99 |
|---|---|
| RoHS | Yes |
| Mounting Hole Dimension | Dia. 22mm |
| REACH Compliant | Yes |
| Rated Current | 8 mA |
| PMI Type | Threaded |
| Standard/Custom Product | Standard |
| Voltage | 120 Volts |
| Lamp Type | LED |
| Lead Time (wks) | 12 |
| LED Output Color | Yellow |
| Lens Type | – |
| PMI Color | Yellow |
| Accessory | Bezel for 722-Series |
| Lens Shape | Round Lens |
| MSL Rating | – |
|---|---|
| Sub Family | LED Panel Mount Indicator Lights |
| Terminals | Wire Leads |
| Wire Gauge | 18 AWG |
| Finish | Yellow |
| Number of Lamps | 1 |
| Gasket Material | EPDM |
| Package Qty | 100 |
| PMI Housing Finish | Polycarbonate, UL 94-V2 |
| Series Name Single Select | CNX722120V |
| Minimum Order Qty | 100 |
| Package Type | Bulk Bag |
| Material Lens | Polycarbonate UL 94-V2 |
| Mounting Type | Threaded Assembly |
| PMI Lens Color | Yellow |
| Viewing Angle | wide viewing angle |
|---|---|
| Product Family | VCC |
| Product Status | New Product Introduction (NPI) |
| Country of Origin | MX (Mexico) |
| Length Wire Leads | 6.0" |
| Mounting Hardware | With Hex Nut |
| Tab Terminal Size | – |
| Harmonization Code | 8531.80.90.51 |
| PMI Panel Thickness | Up to 0.300" |
| Degree of Ingress Protection | IP67 |
| Price Book Export Key Attribute for Macro | VCC |
| Conflict Mineral Free | Yes |
| Mounting Hardware Included | Yes |
