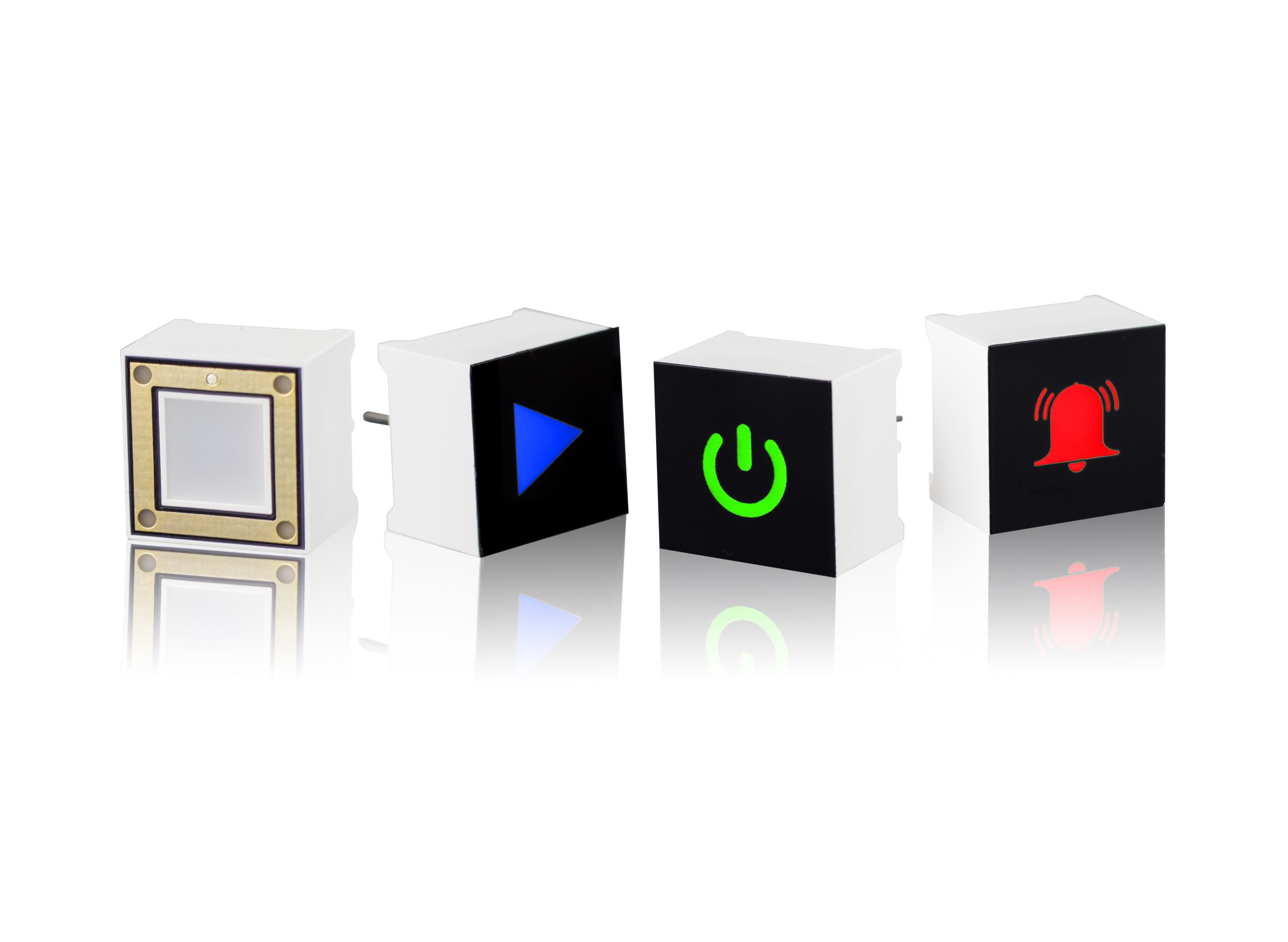

Capacitive Touch Sensor Display, Through Hole, Square, 15mm x 15mm, LED, 2.0V, Red
Product Description
CTH TH SQR 15mm LED 2.0V Pins Red
- Categories:
- Capacitive Touch LED Display
- LED Displays
Datasheet
Additional information
| ECCN | EAR99 |
|---|---|
| RoHS | Yes |
| REACH Compliant | Yes |
| LED Mounting Method | Through Hole |
| Standard/Custom Product | Standard |
| Lead Time (wks) | 12 |
| LED Output Color | Super Red |
| Polarity | Cathode |
| Digit Size | – |
| MSL Rating | – |
| SAP Look Up | Yes |
| Sub Family | Capacitive Touch LED Display |
| Number of Segments | – |
|---|---|
| Package Qty | 100 |
| Series Name Single Select | CTH |
| Display Type | Capacitive Touch Sensor Display |
| Minimum Order Qty | 100 |
| Package Type | 10 units/tray |
| Product Family | VCC |
| Product Status | New Product Introduction (NPI) |
| Maximum Wavelength (nm) | 645 nm |
| Minimum Wavelength (nm) | – |
| Manufactured By | Buy Resell |
| Peak Wavelength (nm) | 660 nm |
| Country of Origin | CN (China) |
|---|---|
| Luminous Intensity Typ. (mcd) | 31 mcd |
| Power Dissipation (mW) | 70 mW |
| Reverse Breakdown Voltage (V) | 5 V |
| LED Forward Current (mA) | 25 mA |
| Harmonization Code | 8543.70.95.00 |
| Price Book Export Key Attribute for Macro | VCC |
| Conflict Mineral Free | Yes |
| Display Surface Color | White Surface |
| LED Forward Current Max. (mA) | – |
| LED Voltage Forward Max. (V) | 2.8 V |
| LED Voltage Forward Typ. (V) | 2.0 V |
