The Strategic Imperative of Precision Optics
In the high-stakes environments of medical diagnostics and heavy industrial control, the Human-Machine Interface (HMI) is the critical junction where decisions are made. A failure in communication—whether a false indication, cross-talk between lights, or a component failure—is unacceptable. This is why custom light pipes are not mere accessories; they are mission-critical, precision-engineered optical components.
Standard, off-the-shelf indicators introduce unacceptable reliability compromises. The thesis is clear: custom light pipe design is the necessary investment to guarantee system longevity, operational safety, and unambiguous user feedback in regulated medical and harsh industrial environments.
A custom approach to Light Pipe Design starts with the physics of light transmission and the mechanical demands of the system.
A. The Physics of Performance: Total Internal Reflection (TIR)
A light pipe's fundamental role is to efficiently transport light from the LED source on the Printed Circuit Board (PCB) to the external interface. This efficiency is achieved through the principle of Total Internal Reflection (TIR). The internal geometry of a custom light pipe is carefully sculpted to maximize TIR, guiding light with minimal loss. This process requires precision-molded entry cones and sub-millimeter alignment to optimize coupling efficiency between the LED and the pipe.
B. Reliability Multipliers: Isolation and Protection
A light pipe acts as a crucial physical barrier between the user interface and sensitive electronics.
How do light pipes protect sensitive circuitry through integrated LED ESD Protection? The non-conductive plastic of the light pipe acts as a physical barrier, preventing Electrostatic Discharge (ESD) from user interaction or gloved operation from reaching and damaging sensitive PCB traces and LED chips. This integrated LED ESD Protection is passive but essential. Furthermore, custom optics decouple the optical design from the thermal constraints, allowing engineers to position the LED for optimal heat sinking while placing the indicator for ideal ergonomic user access.
C. Material Science: Engineering for Extreme Environments
Material selection is dictated by the operating environment. Engineers select optical polymers such as PMMA (Acrylic), Polycarbonate, or Cyclic-Olefin Polymer (COP) based on criteria including thermal stability, impact strength, and optical clarity over the device's lifetime.
Industrial Reliability: Ruggedization and Mandatory Compliance

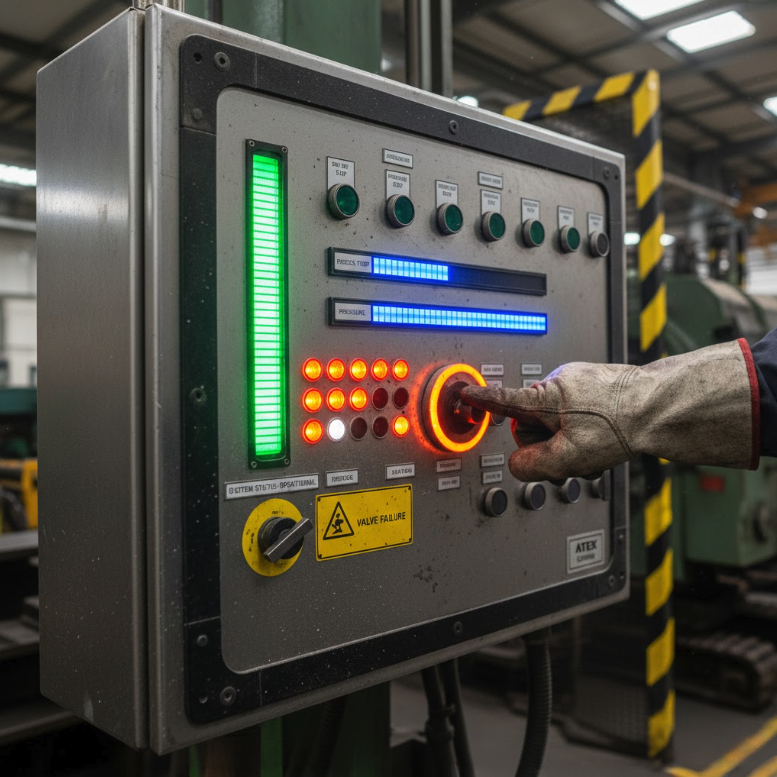

For equipment categorized as Industrial Control Panel Optics, reliability must withstand continuous mechanical and environmental stress.
A. Mechanical Durability and Shock Resilience
How does custom mounting ensure vibration resistance for industrial control panel optics? Custom light pipes are designed with precision mounting features like crush ribs, mounting pins, and snap-fit anchors. These features secure the components, maintaining the crucial sub-millimeter optical alignment even under continuous shock and vibration common on factory floors, in transportation systems (e.g., meeting EN 50155 railway standards), and in heavy machinery.
B. Ingress Protection (IP/NEMA) and Environmental Sealing
To prevent dust and moisture from causing failure, custom light pipes are essential for achieving robust Ingress Protection (IP) and NEMA ratings. Precision-molded ribs and integrated channels are designed to perfectly interface with external gaskets or enclosures, ensuring a hermetic seal against environmental ingress.
C. Certifications for High-Stakes Operations
What are the key certification requirements for ATEX-certified light pipes in hazardous environments? In industries such as oil and gas, chemical processing, and mining, HMIs must comply with strict standards for potentially explosive atmospheres (HazLoc/ATEX-certified). This compliance mandates that the materials and sealing designs of the light pipe system must prevent the accumulation of static charge (which could be an ignition source) and ensure the integrity of the flameproof or intrinsically safe enclosure structure.
Medical HMIs: Hygienic Design and Regulatory Fortitude
In healthcare, device lighting must meet the dual mandate of high reliability and stringent cleanliness.
A. Hygienic Design and Chemical Resistance
Medical devices are subject to frequent, aggressive disinfection. The light pipe must meet high IP67 or higher standards for liquid immersion during wash-down. A significant threat is Environmental Stress Cracking (ESC), which occurs from repetitive exposure to aggressive hospital disinfectants. Custom light pipe design uses a validated material approach to ensure Polymer Chemical Resistance against the leading chemical sterilization agents.
B. Material Validation for Sterilization
Polymers must be explicitly selected and validated to ensure that optical clarity and structural integrity withstand repeated exposure to chemical agents, UV radiation, and heat-sterilization cycles. Adherence to strict quality control, often aligned with ISO 13485 Quality Management Systems (QMS), is a mandatory compliance step for suppliers of Medical Device Lighting components
Improving User Feedback and Eliminating Cognitive Risk
A clear, unambiguous HMI Indicator prevents operator confusion and critical errors.
A. Eliminating Critical HMI Errors
How does custom light pipe design prevent optical cross-talk and light bleeding in HMIs? In densely packed indicator arrays, light from one LED can 'bleed' into an adjacent indicator, a phenomenon called Optical Cross-Talk. Custom light pipe systems use trace simulations and incorporate engineered features such as light shields, internal fins, and custom opaque housings to ensure signals are perfectly isolated, eliminating this cognitive risk.
B. Clarity Through Optical Sculpting
Customization extends to the light pipe's exit surface. Engineers can sculpt the final aperture (polished, frosted, or Fresnel lens) to precisely control the beam angle, ensure uniform brightness, and maximize contrast in high-ambient light conditions, making the status clear from any viewing angle.
C. Advanced Feedback Interfaces
Custom optics are integral to advanced HMI features. This includes integrating illumination rings around capacitive switches to provide unambiguous feedback for gloved operators. Furthermore, a modern trend is designing for Integrated Sensing: custom optics can be dual-purpose, simultaneously guiding light for indication and gathering ambient light for dynamic brightness control, all through a single aperture.
The initial investment in custom tooling is a strategic decision that delivers significant long-term economic benefits and impacts Total Cost of Ownership (TCO).
A. Quantifying Reliability Gains
What measurable MTBF improvements does custom light pipe optimization provide for LEDs? There is a direct link between optical efficiency and device longevity. Higher optical efficiency means a given brightness level can be achieved with a lower drive current. A lower drive current results in a reduced LED junction temperature. Since LED life is inversely proportional to temperature, this reduction extends the Mean Time Between Failures (MTBF), providing a quantifiable Return on Investment (ROI) on the initial tooling cost.
B. Total Cost of Ownership (TCO) Analysis
The initial tooling investment is offset by multiple long-term savings, dramatically reducing the Total Cost of Ownership:
● Lower Power Consumption: Reduced drive current saves energy.
● Simplified Thermal Management: Cooler operation reduces the need for complex heat sinks.
● Reduced BOM Complexity: Custom multi-output pipes replace multiple standard components.
● Minimized Warranty and Maintenance Costs: Higher MTBF leads directly to fewer field service calls and warranty claims over the device's lifecycle.
C. Manufacturing Efficiency
Custom designs featuring press-fit or self-aligning multi-output clusters enable faster, more automated assembly processes, thereby significantly reducing labor time and overall manufacturing costs.
Custom light pipes are an essential investment that transforms the HMI from a potential liability into a mission-critical asset. They are crucial components that ensure system durability, enforce regulatory compliance (from IP ratings to ATEX), and fundamentally enhance operational safety by providing unambiguous, high-contrast user feedback. The future of HMIs points toward fully integrated smart sensing and highly validated digital design (e.g., ray tracing), making precision Light Pipe Design more critical than ever.
